Description
SPECS & DETAILS
Dimensions: 46.70 H x 28 W x 32 D
ACCESSORIES
Drain Hose Extension Kit- Approx. 44″ | WH49X316 (sold separately) |
Fill Hose | WH41X10207 (sold separately) |
Optional Riser | GFR0728PTDS (Sold Separately) On a riser this unit is no longer ADA compliant. |
Sink Unicoupler Hook-up | WH41X36697 (sold separately) |
Touch-Up-Paint – 0.6 OZ. | WR97X27706 (sold separately) |
Universal low profile washer floor tray | PM7X2 (sold separately) |
APPEARANCE
Color Appearance | Carbon Graphite |
Handle | Pocket Handle |
Installation | Plugs into 120V wall outlet Built-In, Riser, Side-by-Side |
CAPACITY
Total Capacity (cubic feet) | 4.8 cu ft |
Wash Basket Type | Stainless Steel |
ECONOMICAL / QUIET
Motor Type | Belt Drive Induction Motor w/ 10 Year Warranty |
Quiet Package | Quiet-By-Design with dBT™ Quiet Control |
FEATURES
Additional Cycles | Jeans Air Fluff PowerClean Swimwear Additional made available through Download Cycle |
Additional Dryer Features | Wash Complete Alert Interior Light EZ Access dual lint mesh & foam filter |
Additional Washer Features | Adjustable Leveling Feet Attached PowerCord Auto Load Sensing Drain Hose Included Front Serviceable Round with Glass Viewing Window Vibration Control |
Automatic Dry Control | Yes |

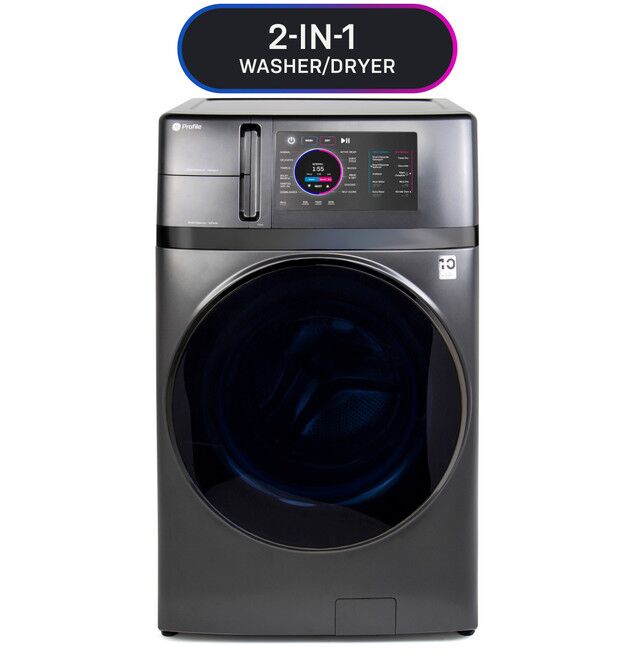

Configuration | Front Load Combination Washer/Dryer |
Control Type | Electronic Electronic Touch w/ LCD Multicolor Dispay with Count Down & Status Ring LED |
Dispenser | Dual Drawer Bulk Dispenser Bleach Timed Flow Through Detergent (Liquid/Powder) Timed Flow Through Fabric Softener Timed Flow Through Protected with Microban® SmartDispense™ – Bulk Detergent 50 oz and Bulk Softener 32 oz |
Drum Type | Stainless Steel |
Dryer Control Features | LED Indicators Self Diagnostics add remote Start Control Sounds High/Medium/Low Brightness High/Medium/Low Child Lock Control Sounds On/Off Delay Start – Up to 24 hours Variable End-of-Cycle Signal Cycle Countdown through Ring and LCD Cycle Progression Information Available in 3 Languages Help Functions / Menu |
Dryer Cycles | Normal Timed Dry Downloaded Spin & Dry EcoCool™ Wrinkle Care Delicates Dewrinkle Towels Bulky / Bedding Steam Active Wear Quick Dry Whites |
Drying Capability | Full Loads from Wash Cycle |
Dryness Levels | More Dry |
Exhaust Options | Ventless Heat Pump |
Fuel Type | Electric |
Functions | Wash+Dry; Wash Only; Dry Only |
Heat Selections | 5 |
Maximum Spin Speed | 1300 RPM |
Microban™ Antimicrobial Treated Surfaces | Microban® in Gasket, Dispenser, Pump and hoses |
Moisture Sensor | Humidity Sensor Dry |
Number of Cycles | 12 |
OdorBlock Capabilities | UltraFresh Ventless System with OdorBlock™ |
Receptacle Type | 3-Prong Grounding |
SmartDispense™ Technology | Adaptive SmartDispense |
Soil Levels/Options | 5 (Extra Light, Light, Normal, Heavy, Extra Heavy) |
Style | Front-Loading Compact |
Timed Dry | 30, 60, 90, 120, 150 mins |
UltraFresh System | UltraFresh Ventless |
Vibration Control | dBT™ Dynamic Balancing Technology |
Wash System | Tumble Wash & Condenser Dryer |
Wash/Rinse Temperatures | 5 |
Wash/Spin Speed Combinations | 5 |
Washer Control Features | Add Garment add remote Start Control Sounds High/Medium/Low Brightness High/Medium/Low Child Lock Control Sounds On/Off Variable End-of-Cycle Signal Cycle Countdown through Ring and LCD Cycle Progression Information Available in 3 Languages Help Functions / Menu Self Diagnostics |
Washer Cycles | Normal Rinse & Dry EcoCool™ Self Clean Delicates Towels Bulky/Bedding Sanitize with Oxi Downloaded Active Wear Quick Whites |
Washer Options/Settings | Pre Wash Extra Rinse Remote Start Timed Delay Start |
Water Levels | Load-Sensing Adaptive Fill More Water Option |
Water Temp System | Tap Cold, Cold, Warm, Hot, Extra Hot |
WiFi Connect | Built-In |
POWER / RATINGS
Circuit Breaker or Time Delay Fuse | 15 Amp |
Motor Speeds | Variable |
Volts/Hertz | 120V; 60Hz |
WARRANTY
Labor Warranty | Limited 1-year entire appliance |
Parts Warranty | Limited 1-year entire appliance Limited 10-year motor Limited 5-Year Drying Sealed System |
Warranty Notes | See written warranty for full details |
WEIGHTS & DIMENSIONS
Approximate Shipping Weight | 323 lb |
Depth with Door Open 90° | 54 1/2 in |
Net Weight | 302 lb |
Overall Depth | 32 in |
Overall Height | 46.70 in |
Overall Width | 28 in |
